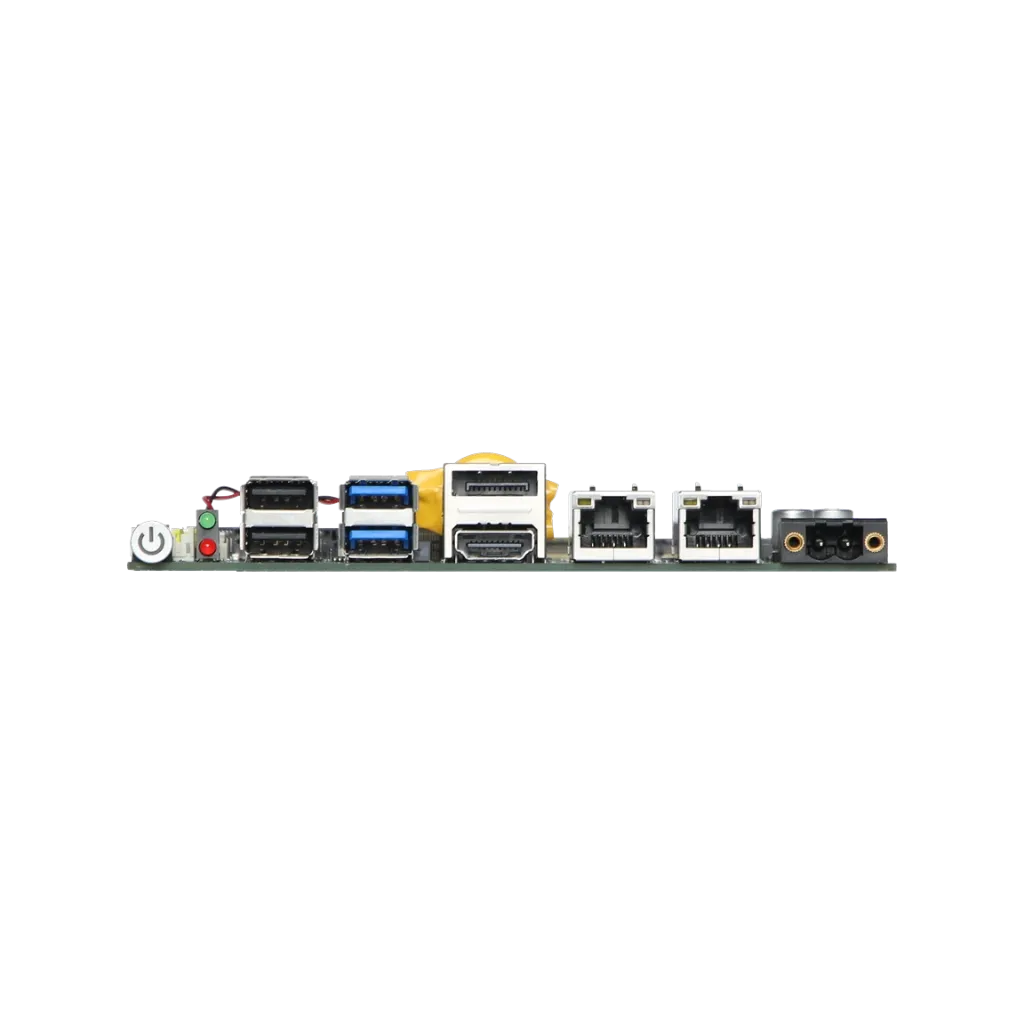

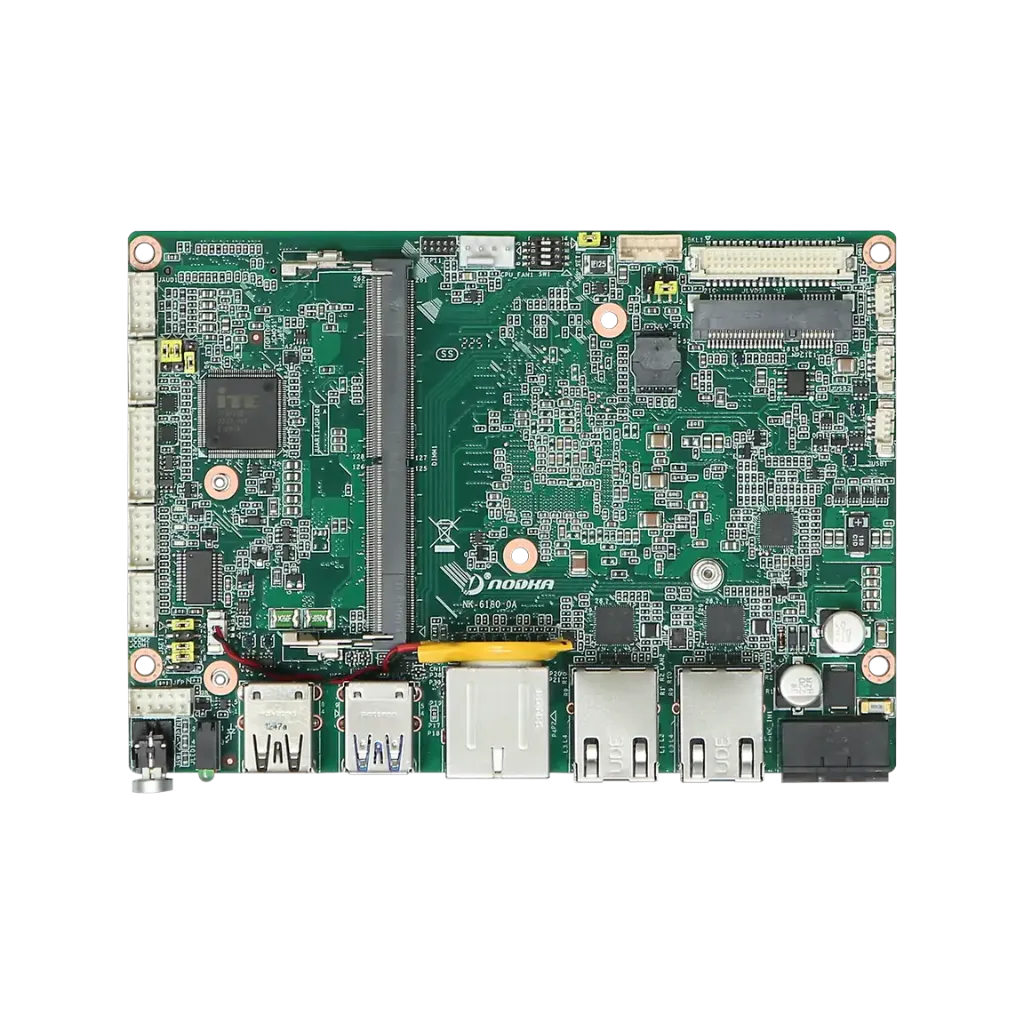

3.5" SBC board, Intel N97, DDR5, M.2 (PCIe 4.0) slot, 2 GbE, HDMI, DP, eDP/LVDS, 6 COM, 12-24V DC input

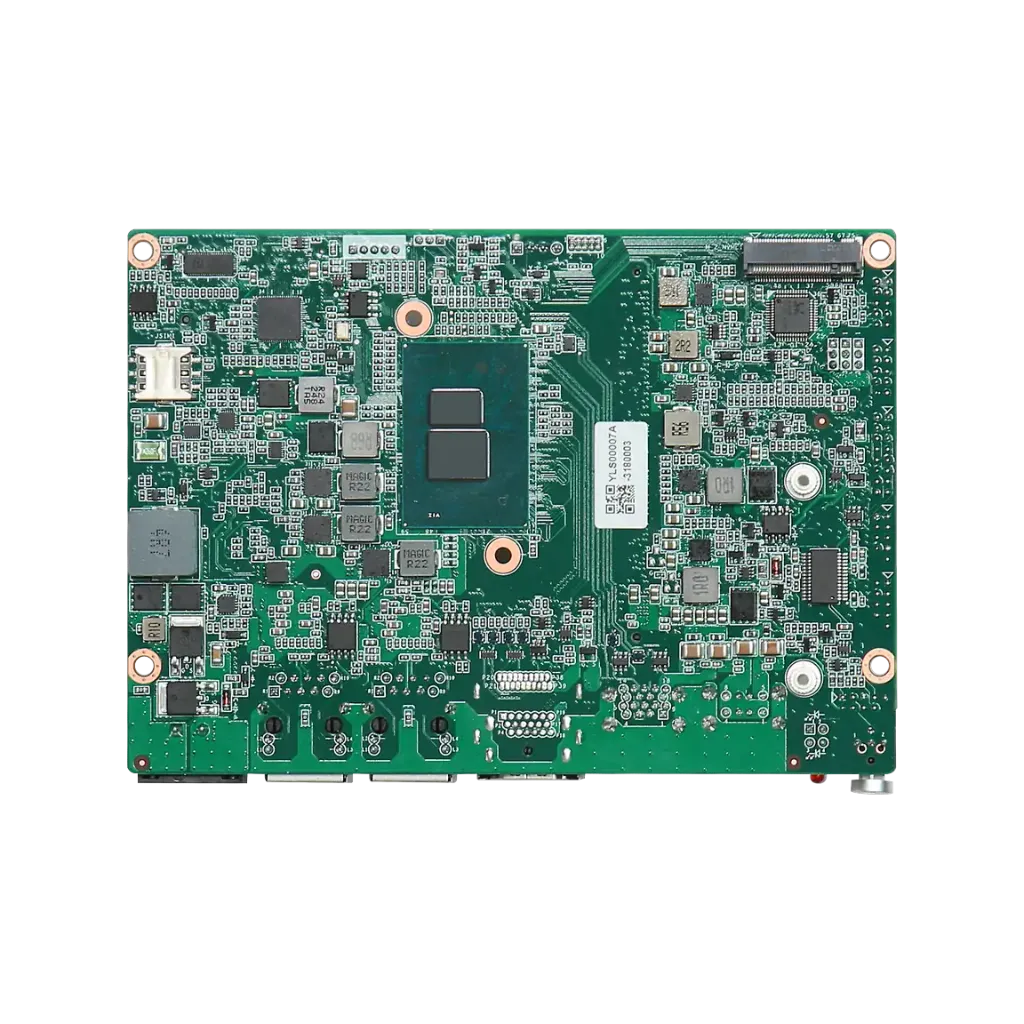

CPU on bottom side of the board.
Features
- Intel® Alder Lake-N platform: Celeron N97 or Core™ i3-N305
- DDR5-4800 SO-DIMM, up to 16GB
- 1 x M.2 2242/2280 M-Key (PCIe 4.0 x2) for NVMe SSD
- 2 x 2.5G LAN (Intel® i225/i226-V)
- HDMI, DisplayPort, LVDS/eDP triple display (up to 4K)
- 6 x COM, 4 x USB (2 x USB 3.2 Gen2, 2 x USB 2.0)
- 1 x Mini PCIe with Nano-SIM (for 4G/5G/Wi-Fi module)
- 12–24V DC input, Phoenix connector
- TPM 2.0 support (fTPM)
