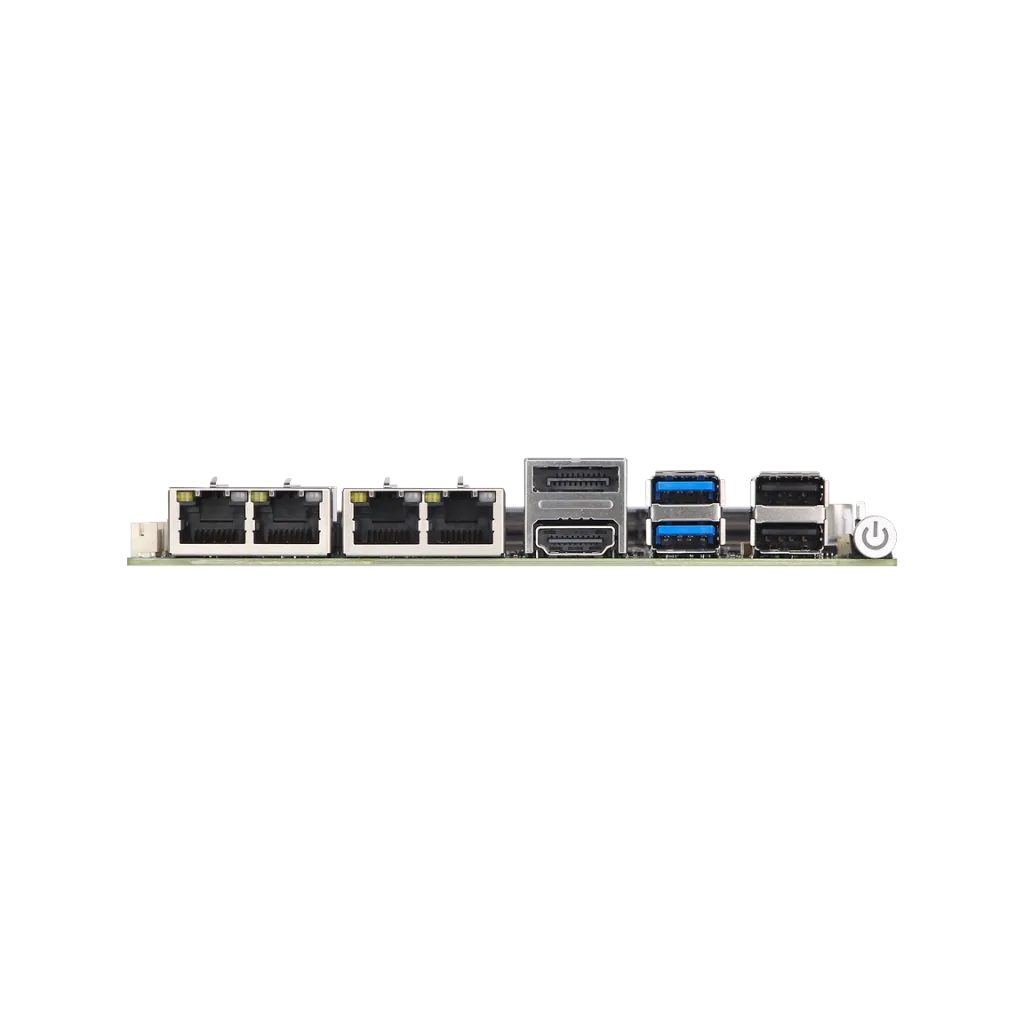

3.5" SBC board, Intel J6412, DDR4, M.2 2242 SSD slot, 4 GbE, HDMI, DP, 6 COM, 12-24V DC input

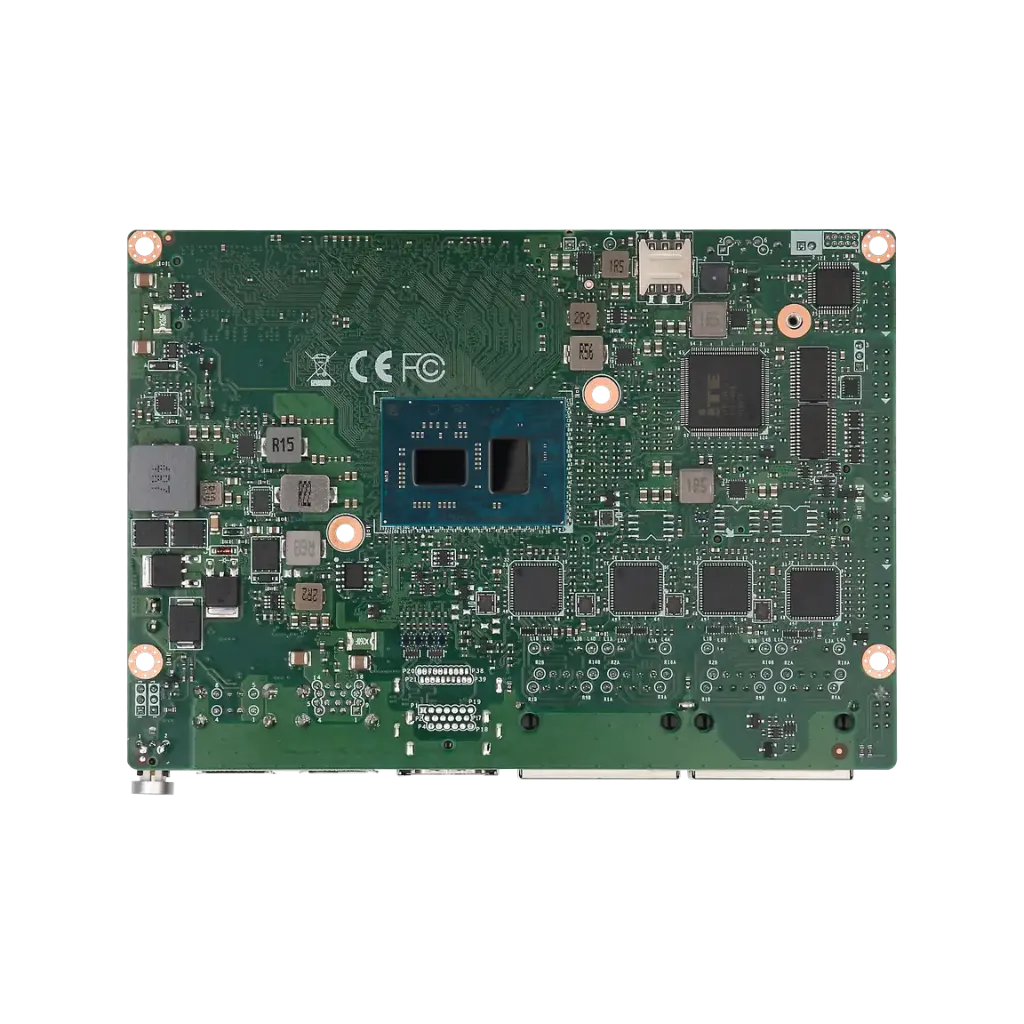

CPU on bottom side of the board.
Features
- Intel® Celeron J6412, 4-core, 2.0GHz (up to 2.6GHz)
- Dual DDR4 SO-DIMM slots, up to 32GB total
- 4 x Intel® i210AT GbE LAN ports
- HDMI and DP dual display support up to 4K
- 6 x COM (2 x RS232/485, 4 x TTL), 4 x USB (2 x USB 3.0)
- 1 x SATA III, 1 x M.2 2242 B-Key (SATA SSD)
- M.2 2230 E-Key for Wi-Fi, Mini PCIe with Nano-SIM for 4G/5G
- TPM 2.0 security supported (fTPM)
- 12~24V DC input with Phoenix connector
