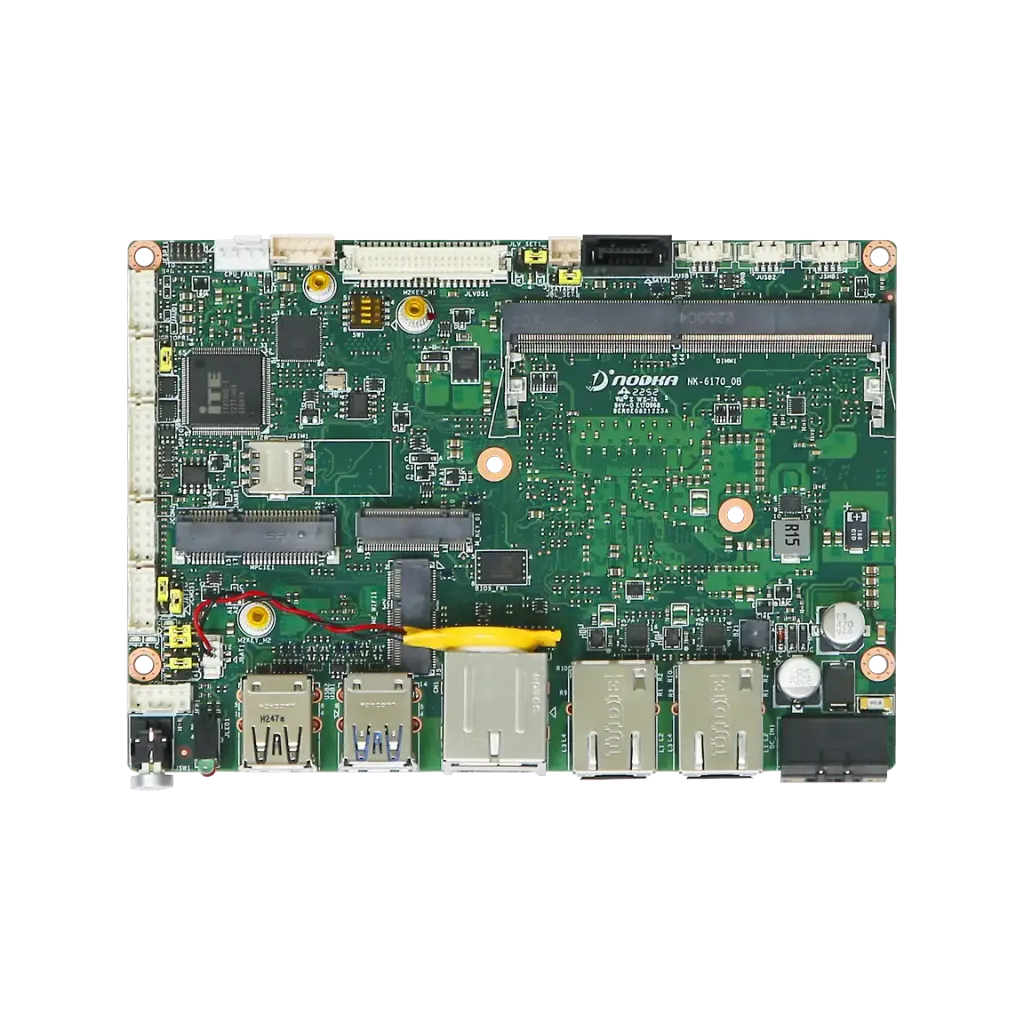

3.5" SBC board, Intel J6412, DDR4, M.2 SSD slot, 2 GbE, HDMI, DP, LVDS/eDP, 6 COM, 12-24V DC input

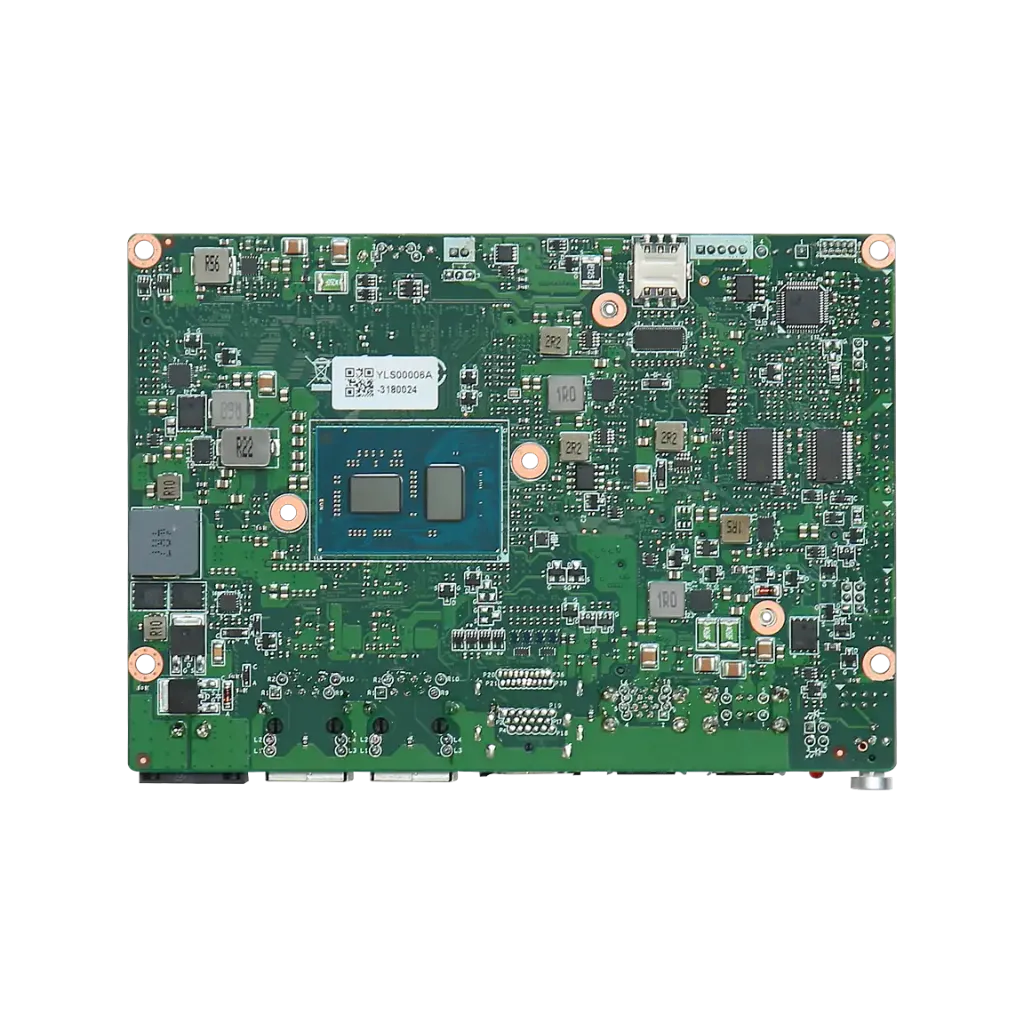

CPU on bottom side of the board.
Features
- Intel Celeron J6412, 4-core processor with low 10W TDP
- Supports up to 32GB DDR4 SO-DIMM
- Triple independent display: DP + HDMI + LVDS/eDP
- 2 x Intel® GbE LAN ports
- 6 x COM ports (2 x RS232/485, 4 x TTL), 4 x USB ports
- Dual M.2 slots: 1 x SATA SSD, 1 x wireless/5G with SIM
- 1 x Mini PCIe for additional expansion
- 12–24V DC wide input range
- -10°C to 60°C operating temperature
- CE/FCC Class A compliance
