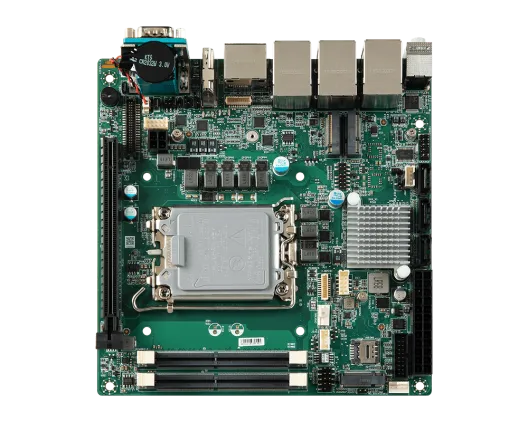

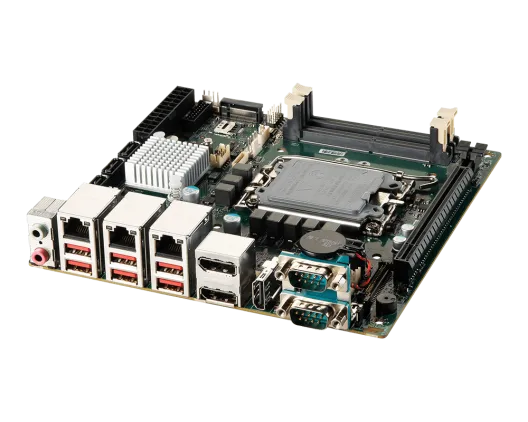

Mini-ITX with 14th/13th/12th Gen Intel® Raptor Lake-S Refresh/Alder Lake-S, Core™ i9/i7/i5/i3, Pentium®, Celeron® Processor & Intel® R680E/Q670E/H610E for High-Performance Solution
Features
- Intel® 14th/13th/12th Gen Raptor Lake-S Refresh/Alder Lake-S Series with R680E/Q670E/H610E
- 2 DDR4 3200 MT/s ECC/non-ECC SODIMM slots up to 64GB
- Quadruple independent displays: 2DP, HDMI, LVDS/eDP
- 3/2 2.5GbE LAN with RJ-45
- 1 PCIe x16 (Gen 4) Slot, 1 M.2 E key (with CNVi), 1 M.2 B key (with SIM Holder) slots
- M.2 M key, 3 SATA 3.0 for storage
- SATA RAID 0/1/5
- 6 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 2 USB 2.0, 4 COM (4 RS-485), GPIO, Audio, System FAN
- Onboard TPM 2.0
- SMBus, iAMT 16.x
- ATX Power
